NEW Lumineq® EL640.400-C3 Part number 996-5056-00LF

Beneq

$1,328.00
Available for pre-order

Share:

Lumineq®  EL640.400-C3  Part number: 996-5056-00LF

Certificate of Compliance available with the purchase of this display.

Warranty: 1 Year.

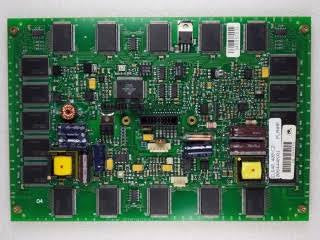

The EL640.400-C3 EL Display is a TFEL display for use in
extreme operating conditions. High temperature rating display.
Lumineq® Thin Film Electroluminescence (TFEL)
displays have the widest operating temperature
range of commercially available technology.
TFEL displays are ideal for use in industrial, medical,
transportation, military, public safety and other
demanding applications.

  • Luminance 52 cd/m² (non-ICEBrite™), 21 cd/m² (ICEBrite™)
  • Resolution 640 x 400 pixels
  • Active area 195 x 122 mm
  • MTBF > 50,000 hours
  • Operating temperature 0 to +55 ˚C
  • Relative humidity 93% RH, oper. IEC 68-2-3
  • Altitude 15,000 m, oper., above sea level, IEC 68-2-13
  • Shock 100 g-force, 4 ms, IEC 68-2-27
  • Vibration 20 to 500 Hz, 0.05 g²/Hz random IEC 68-2-36

CapeTronics Inc an authorized US distributor for Lumineq® EL displays. Repairing, Refurbishing, Replacing and Retrofitting EL Displays since 2001.
